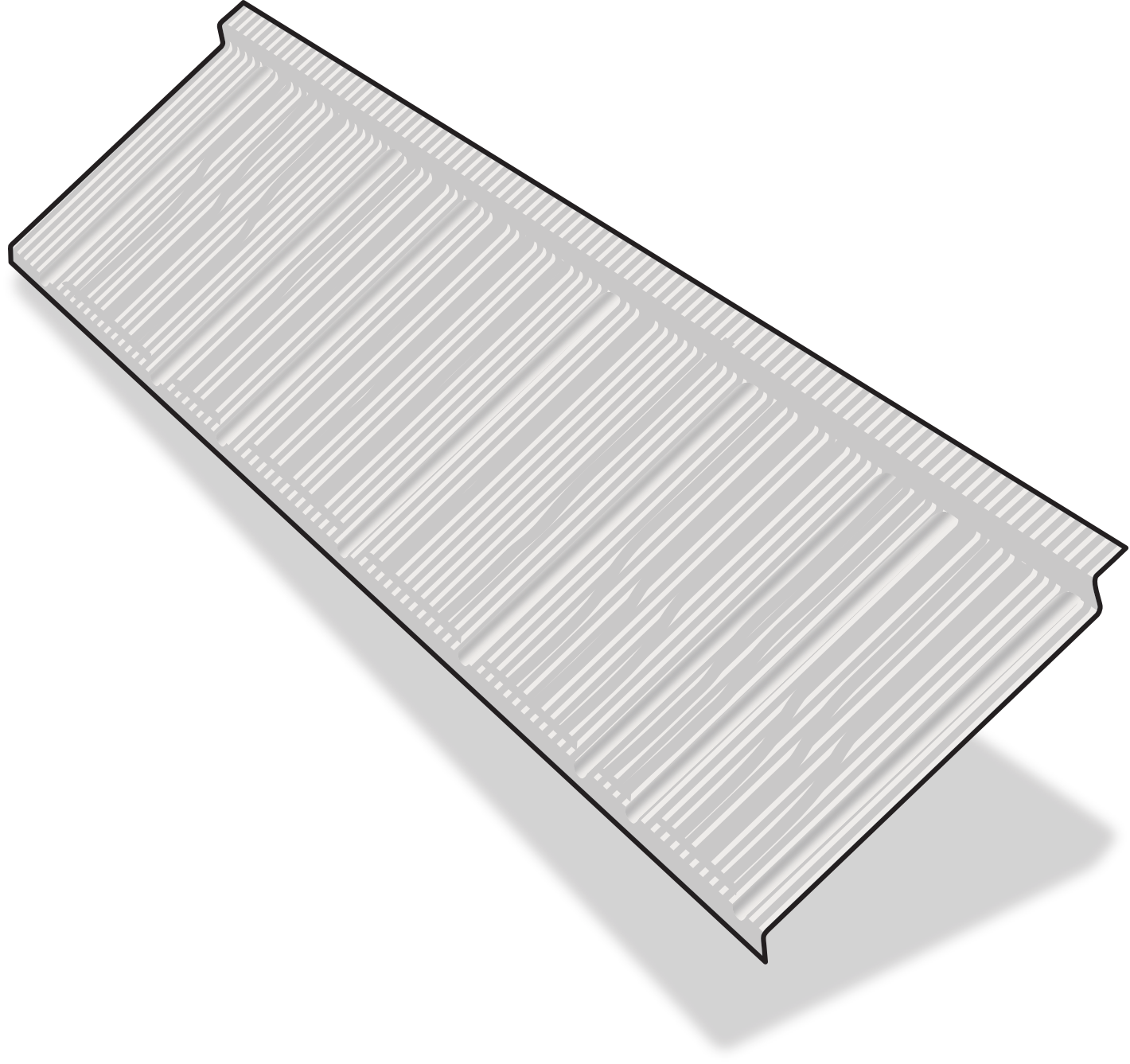

Stratos

Smooth

  • Anvil
  • Chalk
  • Dover Grey
  • Grey Gum
  • Obsidian
  • Oilskin

Textured

  • Ashwood
  • Charcoal
  • Greenstone
  • Midnight
  • Pepper

*Colours are as close to the actual products as possible. There may be slight variations due to screen settings.

Product Specifications

Overall Length
1310 mm
Overall Width
410 mm
Length of Cover
1250 mm
Width of Cover
370 mm
Roof Cover / Tile
0.46 m2
Tiles / m2
2.2
Weight / Tile
2.9 Kg Textured / 2.1 Kg Smooth
Weight / m2
6.38 Kg Textured / 4.62 Kg Smooth
Minimum Pitch
15 Degrees

Technical documents

  • E2 Valley Detail
  • Stratos - Eave / Fascia Detail
  • Stratos - Gable / Barge - Angle Trim - Steel Fascia Detail
  • Stratos - Gable / Barge - Barrel Trim - Steel Fascia Detail
  • Stratos - Gable / Barge - No Trim - Steel Fascia Detail
  • View all CAD Files View all technical docs

Be inspired

  • Gerard Steel roof at Airlie Beach
